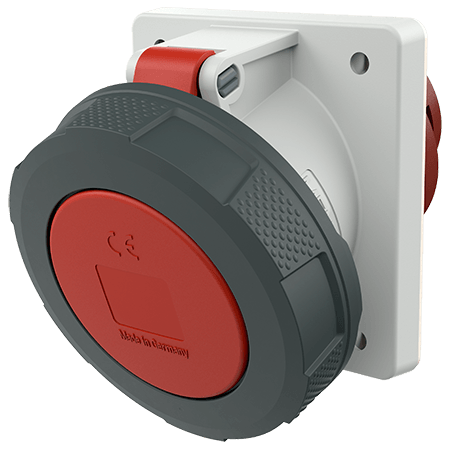

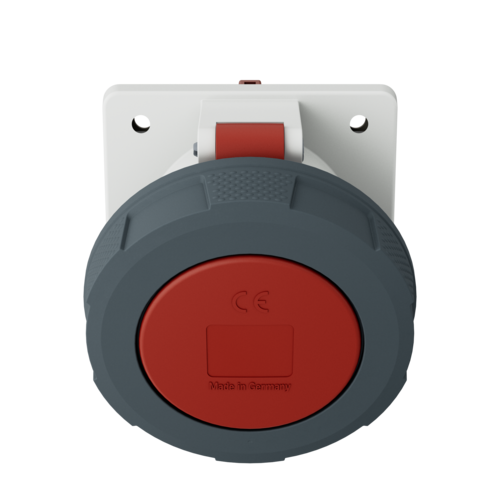

MENNEKES Panel mounted receptacle 2181A
MENNEKES Panel mounted receptacle 2181A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 2181A

Poles
Voltage
Clock position
  • 20° inclination
  • receptacles with pilot contact: part no. + index P
  • Part no.2181A
  • EAN4015394013679
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 2181A

Ampere 63 A
Poles 3 p
Voltage 400 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 110x106 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 520 g
Certifications VDE
EAC
CQC
