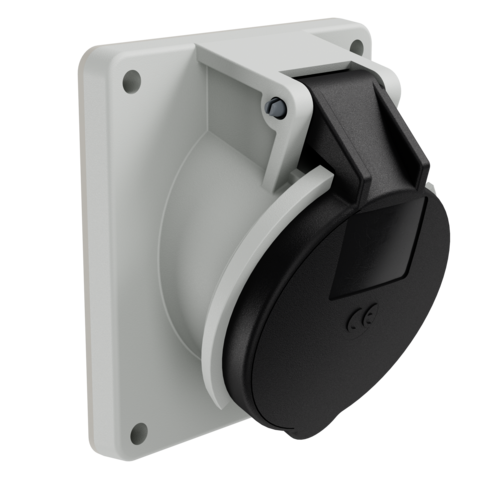

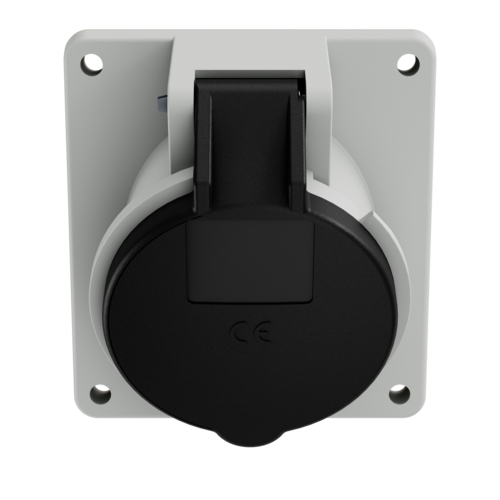

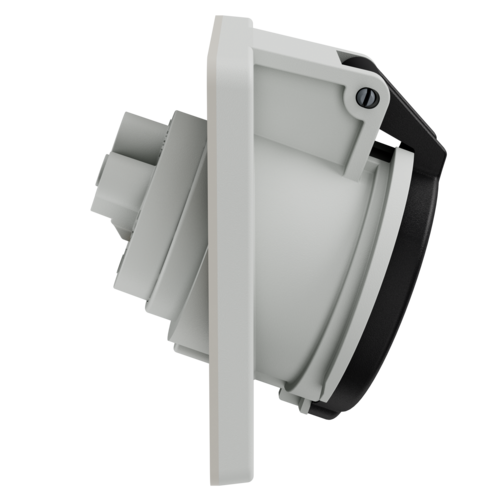

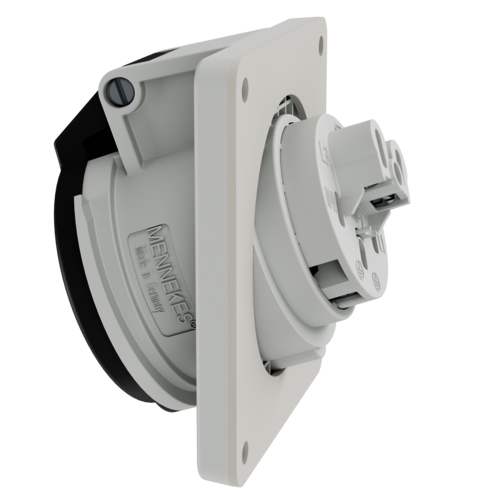

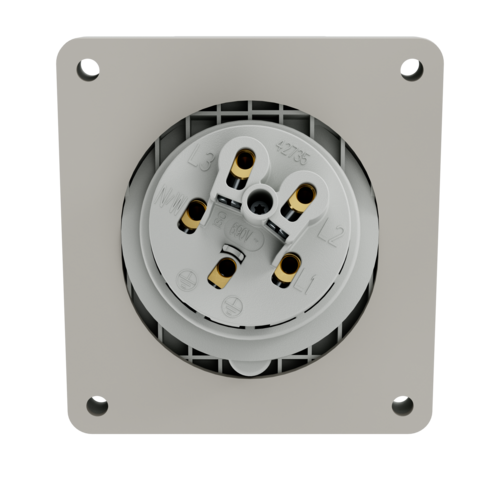

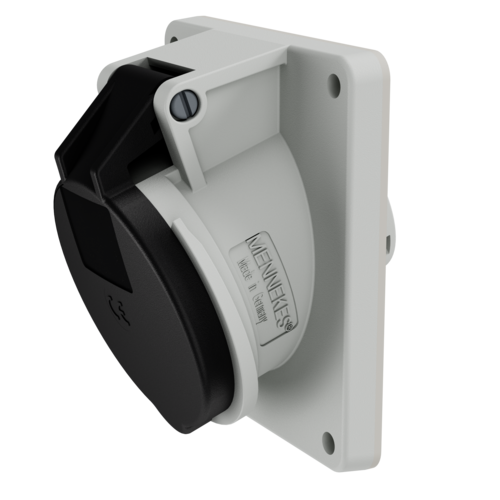

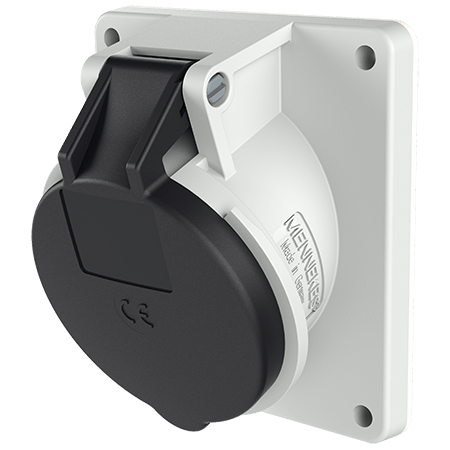

MENNEKES Panel mounted receptacle 2764A
MENNEKES Panel mounted receptacle 2764A images3d

Panel mounted receptacle 2764A

Poles
Voltage
Clock position
  • screw terminals
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.2764A
  • EAN4015394016434
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 2764A

Ampere 32 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 270 g
Certifications EAC

Directives

Panel mounted receptacle 2764A

Appropriate accessories

Panel mounted receptacle 2764A

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
