MENNEKES Panel mounted receptacle 2864

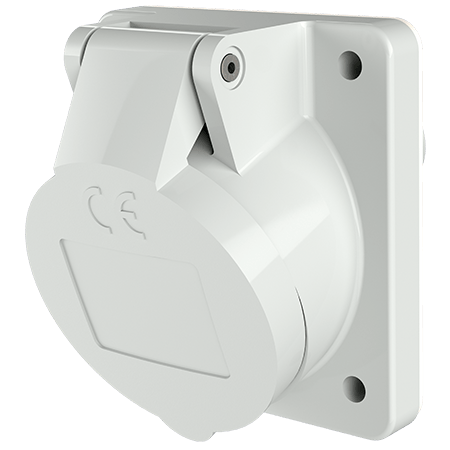

Panel mounted receptacle 2864

Clock position
  • screw terminals
  • 20° inclination
  • Part no.2864
  • EAN4015394016816
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 2864

Ampere 32 A
Poles 2 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 68x62 mm
Fixing hole 53x47 mm
Inclination 20 °
Weight 125 g
Declaration of Conformity EAC
