MENNEKES Panel mounted receptacle 2883
MENNEKES Panel mounted receptacle 2883 images3d

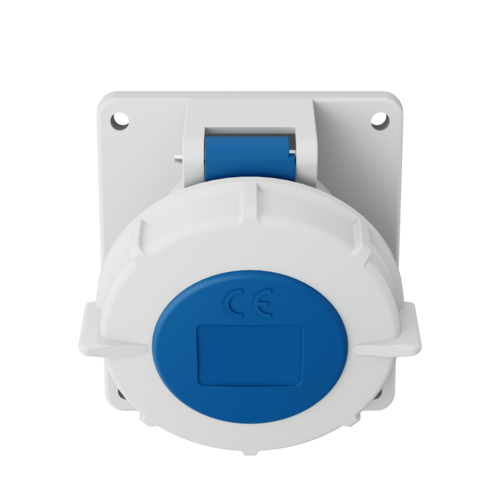

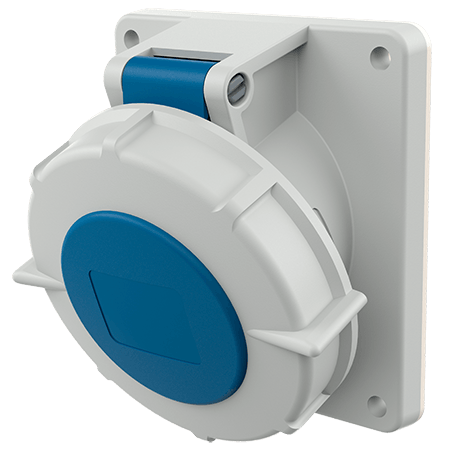

Panel mounted receptacle 2883

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • 20° inclination
  • Part no.2883
  • EAN4015394016861
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 2883

Ampere 16 A
Poles 7 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 256 g
Certifications EAC

Directives

Panel mounted receptacle 2883

Frequently asked questions about the product

What do I use a 7-pin device for?

7-pin plugs and sockets can be used for any application that requires additional contacts.
