Show all Isolating transformer, 12 h / Show all Panel mounted receptacle

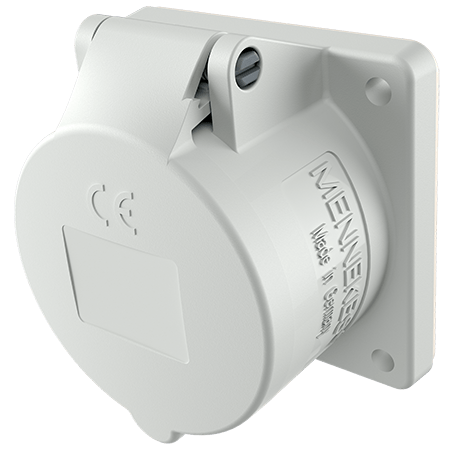

MENNEKES Panel mounted receptacle 3053

Panel mounted receptacle 3053

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.3053
  • EAN4015394017592
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3053

Ampere 16 A
Poles 3 p
Voltage Isolating transformer
Clock position 12 h
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 137 g
Certifications EAC
CQC

Datasheets & Downloads

Panel mounted receptacle 3053

Product infoPanel mounted receptacle 3053 PDF, 367 KB
Dimensional drawing portraitPanel mounted receptacle 3053 PNG, 262 KB
Dimensional drawing landscape formatPanel mounted receptacle 3053 PNG, 278 KB

Directives

Panel mounted receptacle 3053

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 3053

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

more
MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
