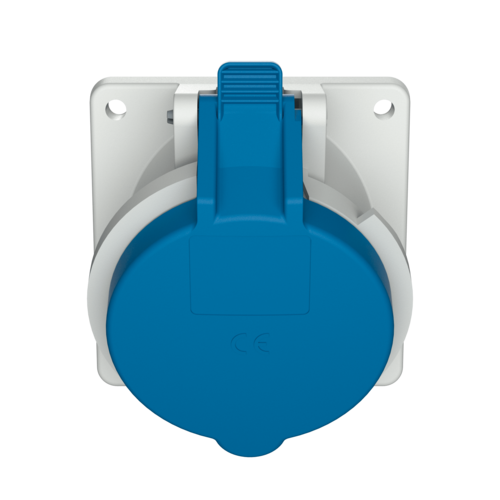

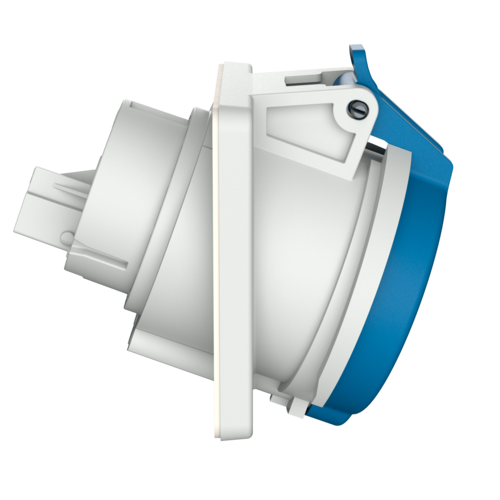

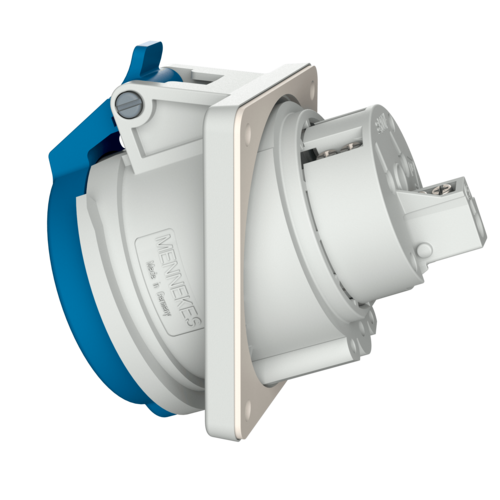

MENNEKES Panel mounted receptacle 3112
MENNEKES Panel mounted receptacle 3112 images3d

Panel mounted receptacle 3112

Ampere 16 A 32 A
  • screw terminals
  • uniform flange dimensions
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3112
  • EAN4015394202677
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Panel mounted receptacle 3112

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 222 g
Certifications EAC
CQC

Datasheets & Downloads

Panel mounted receptacle 3112

Product infoPanel mounted receptacle 3112 PDF, 124 KB
CAD data STPPanel mounted receptacle 3112 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 3112 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 3112 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 3112 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted receptacle 3112 PNG, 52 KB

Directives

Panel mounted receptacle 3112

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 3112

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted receptacles 16A and 32A
