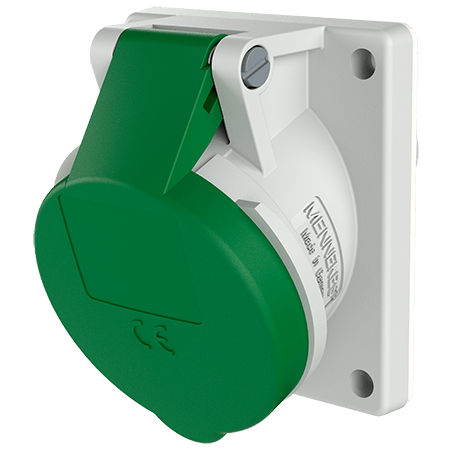

Panel mounted receptacle 3186

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.3186
  • EAN4015394018018
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 3186

Ampere 16 A
Poles 3 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 132 g
Declaration of Conformity CN,CQC
