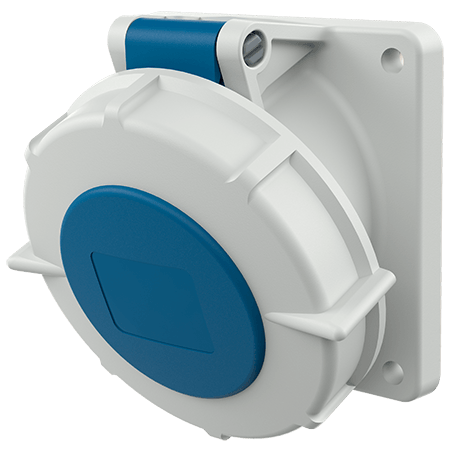

MENNEKES Panel mounted receptacle 3200

Panel mounted receptacle 3200

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • standard flange dimensions
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.3200
  • EAN4015394203032
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3200

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 260 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 3200

Product infoPanel mounted receptacle 3200 PDF, 162 KB
CAD data STPPanel mounted receptacle 3200 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 3200 ZIP, 3 MB
Mounting instructionsPanel mounted receptacle 3200 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 3200 PNG, 100 KB
Dimensional drawing landscape formatPanel mounted receptacle 3200 PNG, 100 KB

Directives

Panel mounted receptacle 3200

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 3200

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted receptacles 16A and 32A
