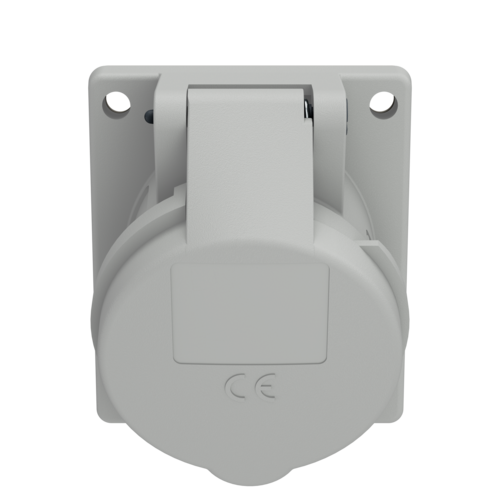

Panel mounted receptacle 3217

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.3217
  • EAN4015394018223
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 3217

Ampere 16 A
Poles 3 p
Voltage Isolating transformer
Clock position 12 h
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 137 g
Declaration of Conformity VDE
EAC (Zwangszulassung)
