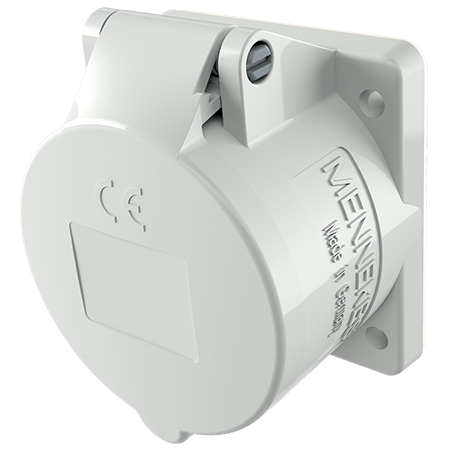

Panel mounted receptacle 3221

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.3221
  • EAN4015394018278
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3221

Ampere 16 A
Poles 3 p
Voltage Isolating transformer
Clock position 12 h
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 62x62 mm
Fixing hole 47x47 mm
Weight 126 g
Declaration of Conformity VDE
EAC
