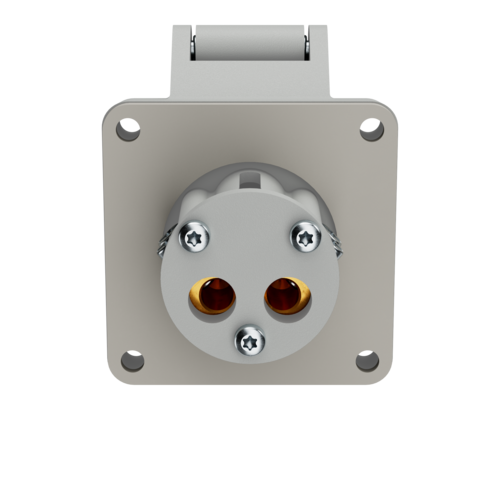

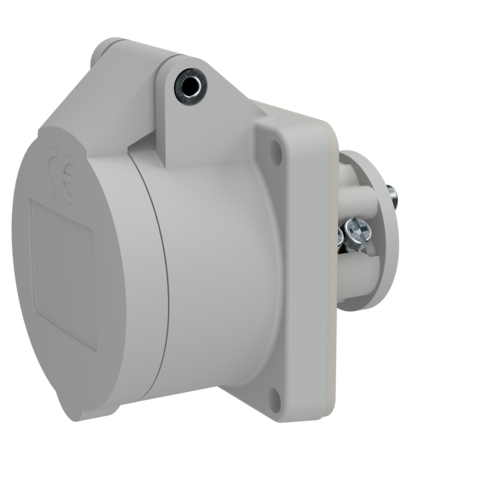

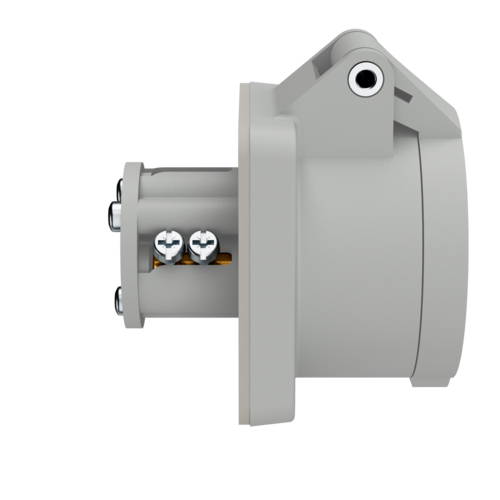

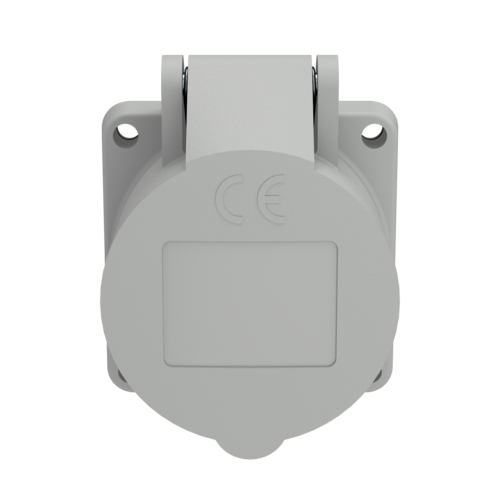

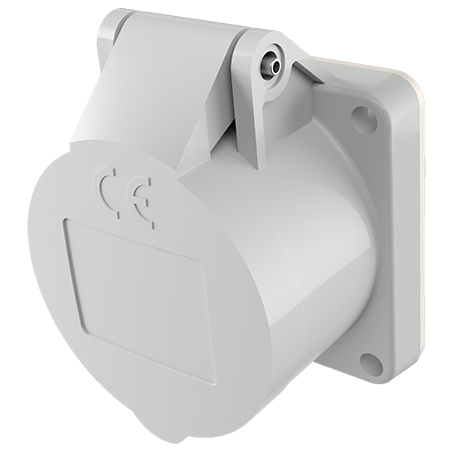

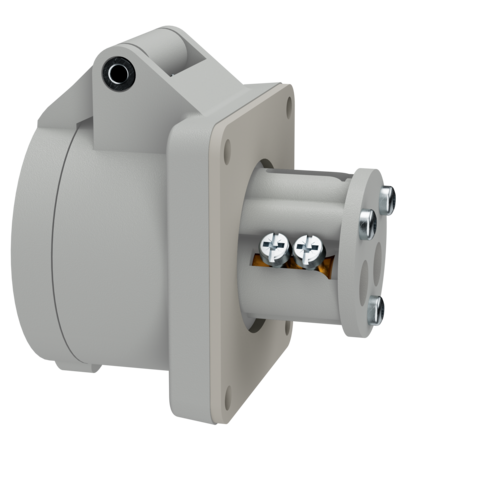

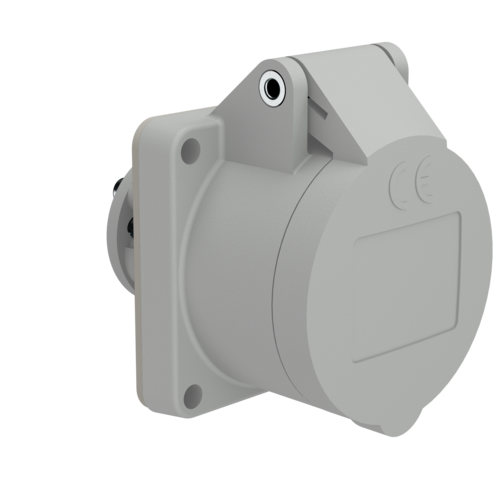

MENNEKES Panel mounted receptacle 604

Panel mounted receptacle 604

Clock position
  • screw terminals
  • straight
  • Part no.604
  • EAN4015394004493
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 604

Ampere 16 A
Poles 2 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 103 g
Declaration of Conformity EAC
