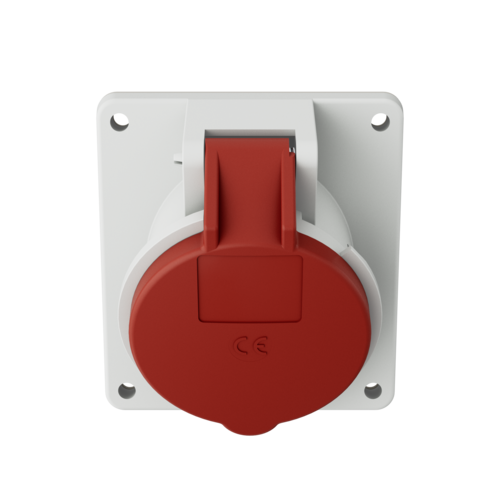

MENNEKES Panel mounted receptacle 740

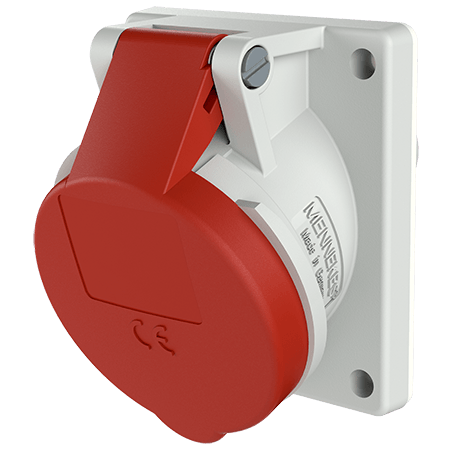

MENNEKES Panel mounted receptacle 740 images3d

Panel mounted receptacle 740

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.740
  • EAN4015394005643
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 740

Ampere 32 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 300 g
Declaration of Conformity EAC
CQC

Appropriate accessories

Panel mounted receptacle 740

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC

Frequently asked questions about the product

What do I use a 7-pin device for?

7-pin plugs and sockets can be used for any application that requires additional contacts.
