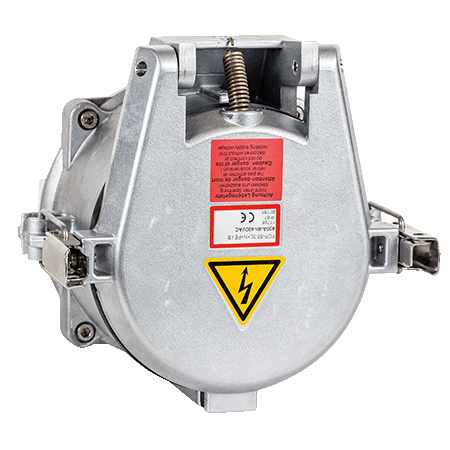

Panel mounted receptacle 75046

Poles
Voltage
Clock position
  • screw terminals
  • seawater resistant products are available on request
  • Part no.75046
  • EAN4015394055136
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 75046

Ampere 400 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 7000 g
Declaration of Conformity EAC
