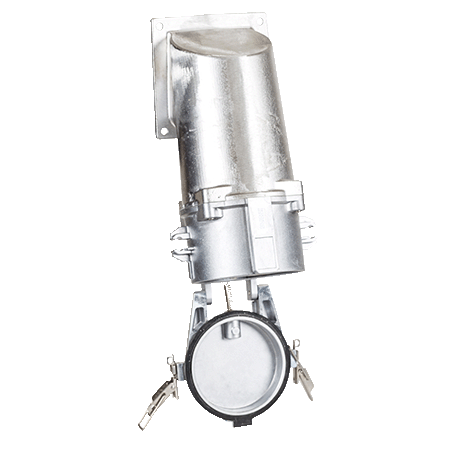

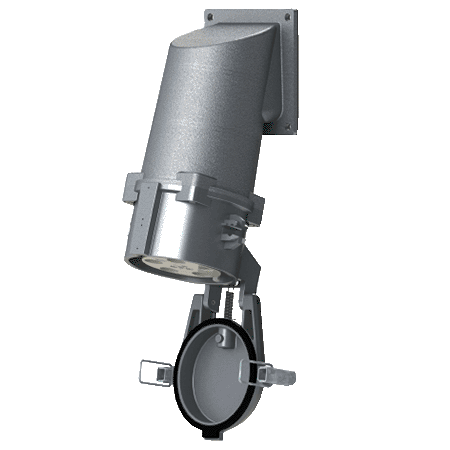

Panel mounted receptacle 75078

Ampere 400 A
Poles
Voltage
Clock position
  • screw terminals
  • 15° inclination
  • seawater resistant products are available on request
  • Part no.75078
  • EAN4015394283218
  • Std. Pack. 1 Qty.

Technical specifications

Panel mounted receptacle 75078

Ampere 400 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 8100 g
