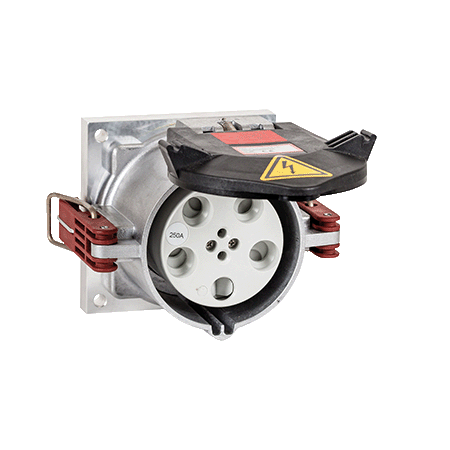

MENNEKES Panel mounted receptacle 75323

Panel mounted receptacle 75323

Poles
Voltage
Clock position
  • aluminum enclosure
  • Screw terminals
  • seawater resistant products are available on request
  • Part no.75323
  • EAN4015394003441
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 75323

Ampere 250 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 3500 g

Directives

Panel mounted receptacle 75323
