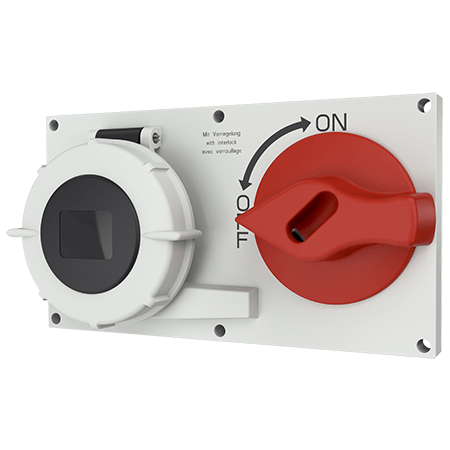

MENNEKES Panel mounted receptacle 7535

Panel mounted receptacle 7535

Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7535
  • EAN4015394228196
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 7535

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 760 g
Declaration of Conformity CQC

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
