MENNEKES Panel mounted receptacle 851
MENNEKES Panel mounted receptacle 851 images3d

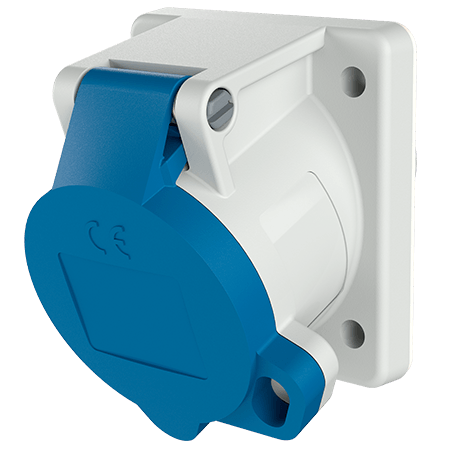

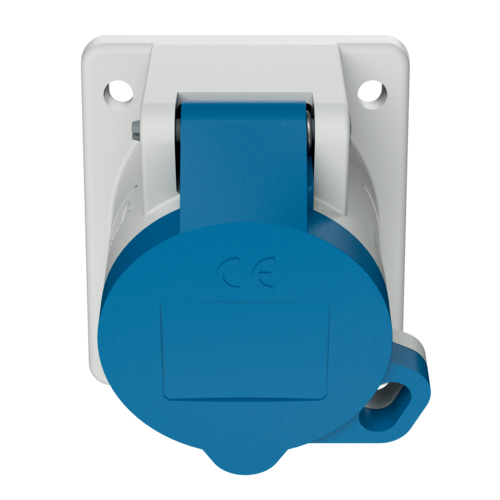

Panel mounted receptacle 851

MENNEKES 16 A panel mounted receptacle with proven screw contacts. Especially suitable for the camping sector.

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with eyelet
  • flange: 68 x 62 mm
  • fixing hole spacing: 47 x 47 mm
  • 20°inclination
  • Part no.851
  • EAN4015394174967
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 851

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 68x62 mm
Fixing hole 47x47 mm
Inclination 20 °
Weight 123 g
Certifications VDE
EAC
