MENNEKES worldwide

MENNEKES

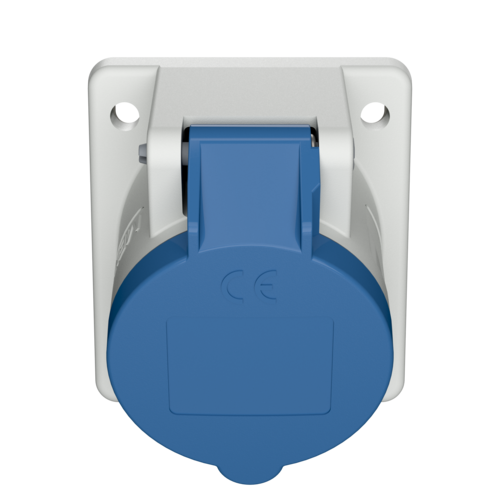

Panel mounted receptacle 857

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • small flange dimensions
  • 20° inclination
  • Part no.857
  • EAN4015394191094
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 857

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 68x62 mm
Fixing hole 47x47 mm
Inclination 20 °
Weight 122 g
