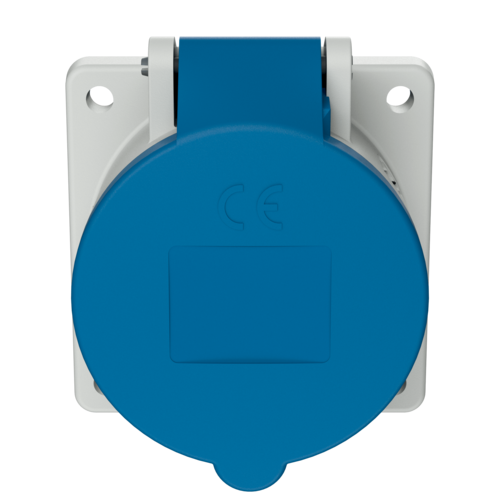

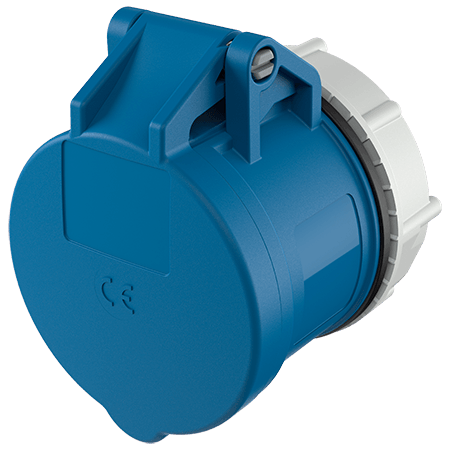

MENNEKES Panel mounted receptacle CEEplus 946
MENNEKES Panel mounted receptacle CEEplus 946 images3d

Panel mounted receptacle CEEplus 946

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with 4 additional contacts
  • straight
  • Part no.946
  • EAN4015394206507
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle CEEplus 946

Ampere 16 A
Poles 3 p+a
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 155 g
Certifications EAC

Directives

Panel mounted receptacle CEEplus 946
