Panel mounted receptacle CEEplus 960
Ampere
16 A
Poles
Voltage
Clock position
- screw terminals
- with 4 additional contacts
- 20° inclination
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications

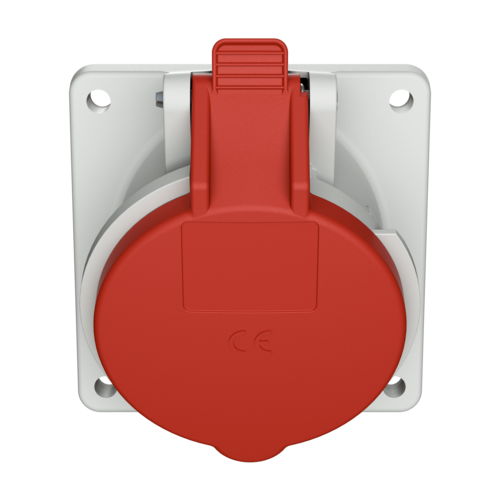

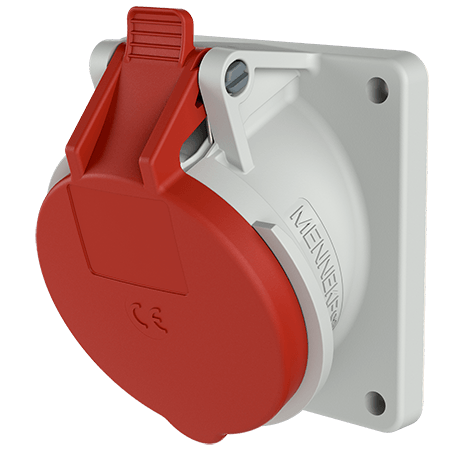

Panel mounted receptacle CEEplus 960
| Ampere | 16 A |
|---|---|
| Poles | 5 p+a |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact | standard |
| Protection type | IP44 |
| Flange | 85x85 mm |
| Fixing hole | 70x70 mm |
| Inclination | 20 ° |
| Weight | 200 g |
| Declaration of Conformity | EAC |
