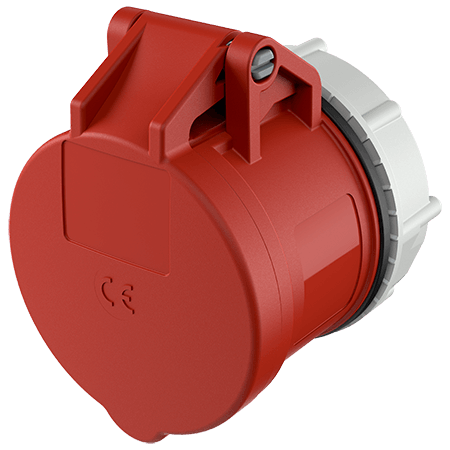

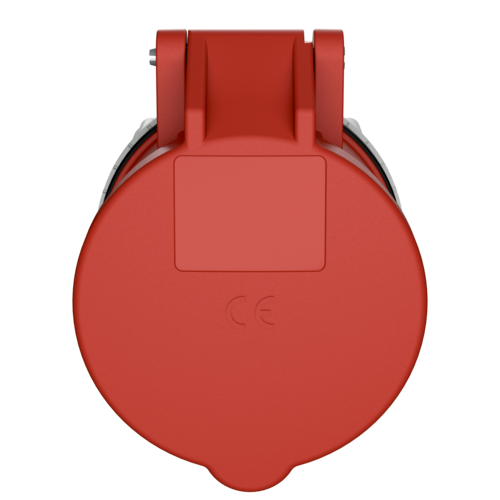

Panel mounted receptacle RAPIDO® CEEplus 962

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with 4 additional contacts
  • straight
  • centralized fastening Ø 61 mm
  • Part no.962
  • EAN4015394212317
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle RAPIDO® CEEplus 962

Ampere 16 A
Poles 5 p+a
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 200 g
