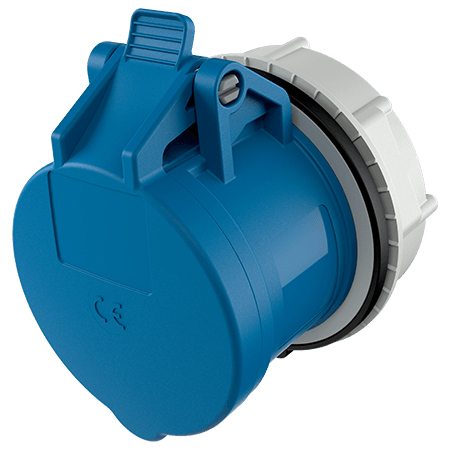

Panel mounted receptacle RAPIDO® with TwinCONTACT 1133

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • for wall apertures 70 mm diameter
  • central fixing
  • Part no.1133
  • EAN4015394214748
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle RAPIDO® with TwinCONTACT 1133

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Plug-in terminals
Contact standard
Protection type IP 44
Weight 182 g
