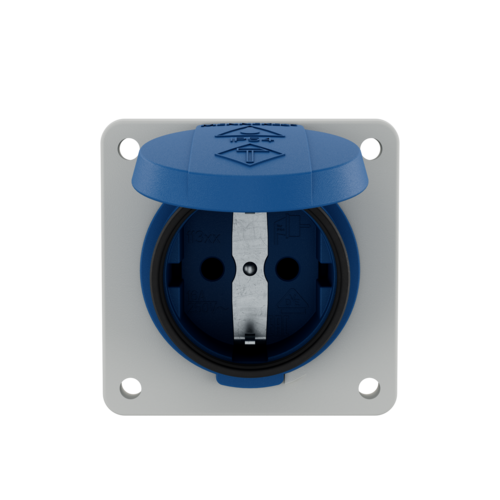

Panel mounted receptacle SCHUKO® 11311F

Ampere 16 A
  • for portable use
  • with front gasket
  • with hinged lid
  • for easy installation in a cable duct or an enclosure
  • 3 plug-in terminals as connecting terminals 1.5 – 2.5 mm²
  • Part no.11311F
  • EAN4015394259251
  • Std. Pack. 20
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® 11311F

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP54
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 60 g

Appropriate accessories

Panel mounted receptacle SCHUKO® 11311F

Blanking flange

Part no. 41419

to close unused apertures, grey

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted receptacles

Frequently asked questions about the product

Why are no seals supplied with panel-mounted SCHUKO® receptacles?

Our panel-mounted SCHUKO® receptacles have a moulded sealing lip and require no separate seal to guarantee that protection class IP44 requirements are met.
