MENNEKES

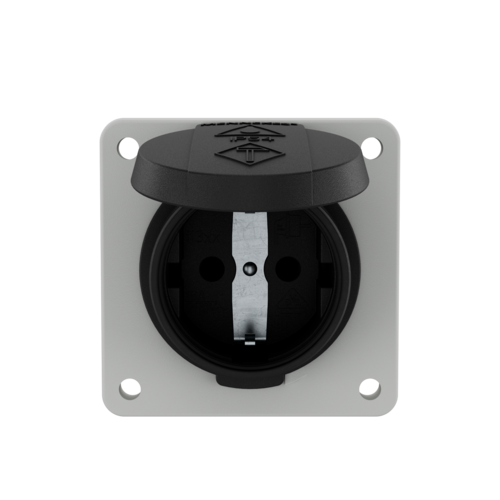

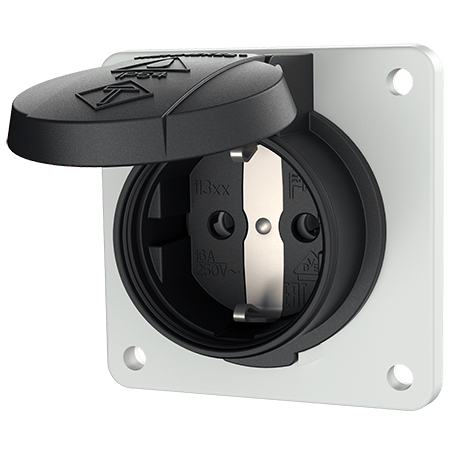

Panel mounted receptacle SCHUKO® 11312F

Ampere 16 A
Poles
Voltage
  • for portable use
  • with front gasket
  • with hinged lid
  • for easy installation in a cable duct or an enclosure
  • 3 plug-in terminals as connecting terminals 1.5 – 2.5 mm²
  • Part no.11312F
  • EAN4015394259268
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle SCHUKO® 11312F

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP 54
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 71 g

Appropriate accessories

Panel mounted receptacle SCHUKO® 11312F

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted receptacles

more

Blanking flange

Part no. 41419

to close unused apertures, grey

more
