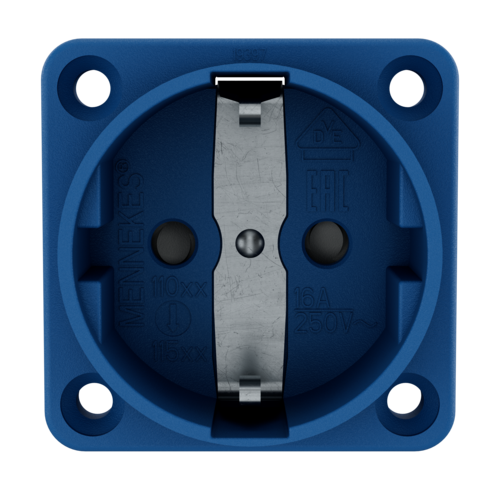

MENNEKES Panel mounted receptacle SCHUKO® 11561
MENNEKES Panel mounted receptacle SCHUKO® 11561 images3d

Panel mounted receptacle SCHUKO® 11561

Ampere 16 A
Poles
Voltage
  • without hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • other colours on request
  • Part no.11561
  • EAN4015394193166
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® 11561

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP20
Shutter Yes
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 32 g
Certifications VDE
EAC
Kema

Directives

Panel mounted receptacle SCHUKO® 11561

Appropriate accessories

Panel mounted receptacle SCHUKO® 11561

MENNEKES Base for wall mounted receptacle 10715

Base for wall mounted receptacle

Part no. 10715

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

Frequently asked questions about the product

Why are no seals supplied with panel-mounted SCHUKO® receptacles?

Our panel-mounted SCHUKO® receptacles have a moulded sealing lip and require no separate seal to guarantee that protection class IP44 requirements are met.
