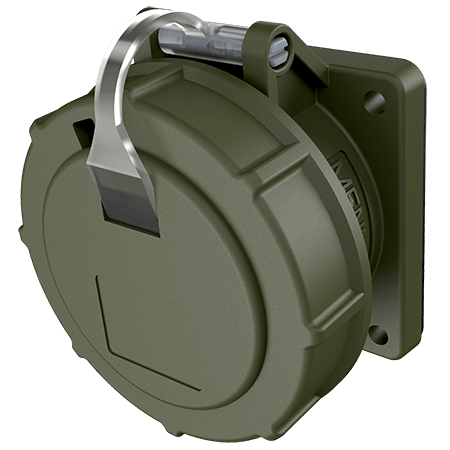

Panel mounted receptacle TM 20459

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • (form AS)
  • Part no.20459
  • EAN4015394038832
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle TM 20459

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Flange 85x75 mm
Fixing hole 60x60 mm
Weight 344 g
Declaration of Conformity DE,VDE
