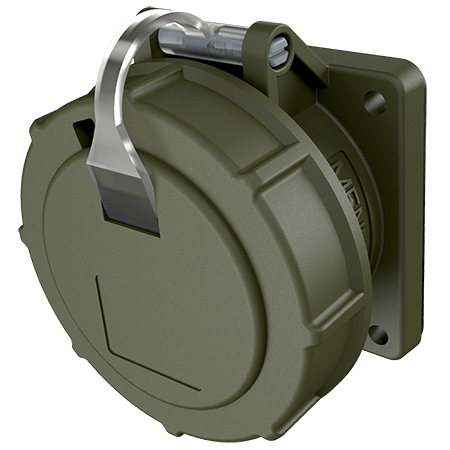

Panel mounted receptacle TM 23176

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • (form AS)
  • Part no.23176
  • EAN4015394043560
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle TM 23176

Ampere 32 A
Poles 5 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Flange 85x75 mm
Fixing hole 60x60 mm
Weight 344 g
Declaration of Conformity DE,VDE
