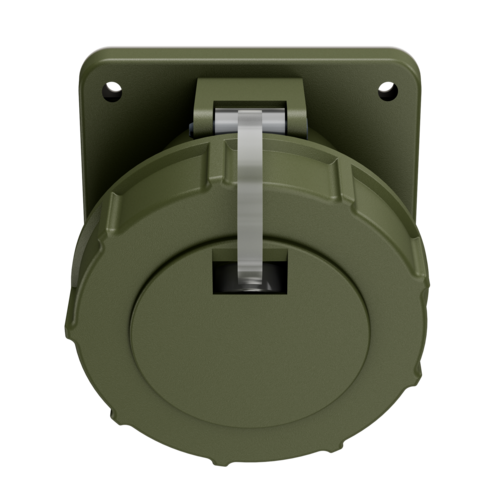

Panel mounted receptacle TM 24841

Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • 20° inclination
  • (form BS)
  • Part no.24841
  • EAN4015394226635
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle TM 24841

Ampere 63 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
X-CONTACT®
Protection type IP 67
Flange 114x114 mm
Fixing hole 90x90 mm
Inclination 20 °
Weight 675 g
Declaration of Conformity EAC
