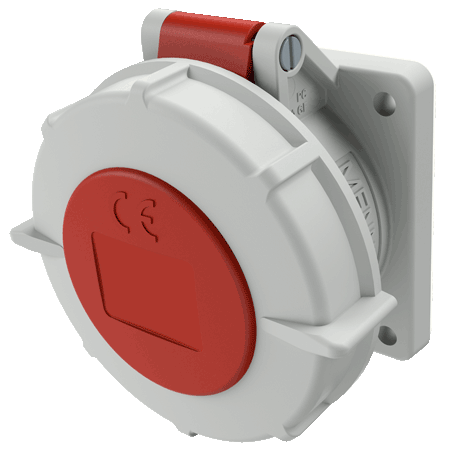

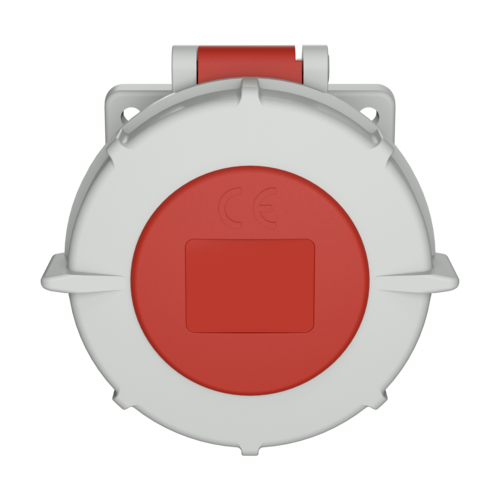

Panel mounted receptacle with TwinCONTACT 1131
Voltage
Clock position
- screwless spring terminals
- suitable for through wiring
- straight
- blanking flange to close unused apertures part no. 41419
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted receptacle with TwinCONTACT 1131
| Ampere | 16 A |
|---|---|
| Poles | 5 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screwless - TwinCONTACT |
| Contact | standard |
| Protection type | IP67 |
| Flange | 75x75 mm |
| Fixing hole | 60x60 mm |
| Weight | 192 g |
| Declaration of Conformity |
VDE EAC CQC |
