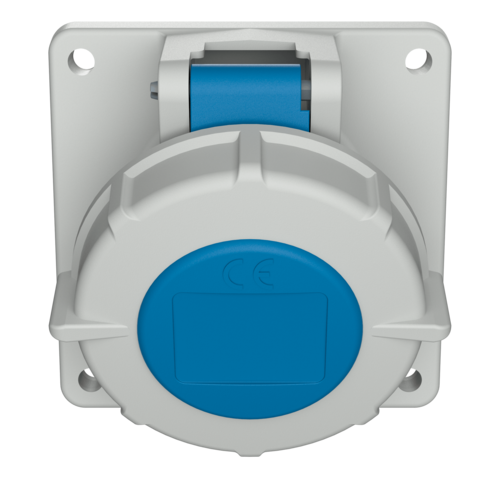

Panel mounted receptacle with TwinCONTACT 1168

Poles
Voltage
Clock position
  • screwless spring terminals
  • standard flange dimensions
  • suitable for through wiring
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1168
  • EAN4015394221487
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1168

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 67
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 120 g
Declaration of Conformity VDE
EAC
CQC

Mounting instruction video

Video mounting instructions

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1168

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
