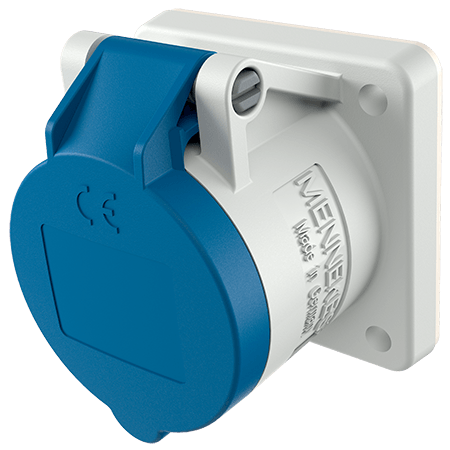

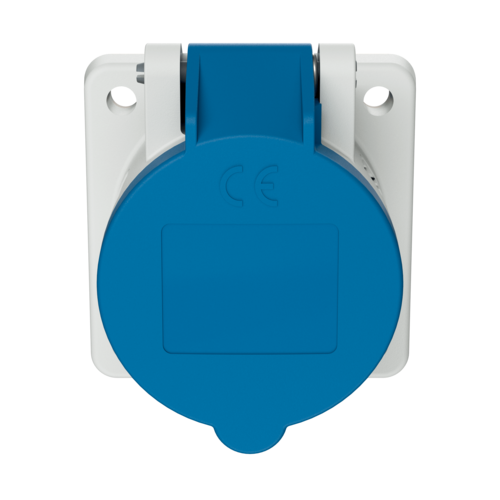

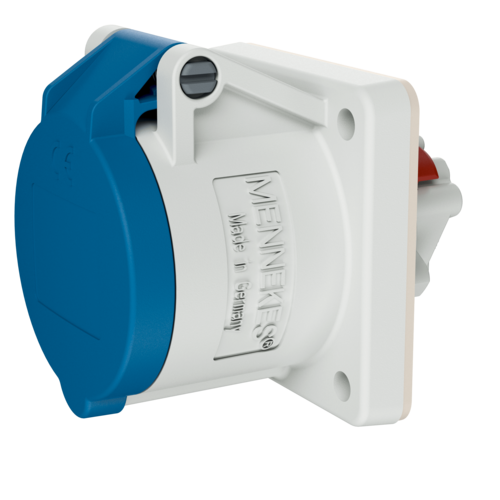

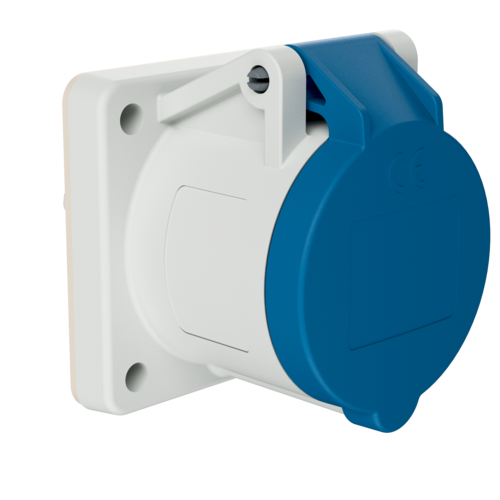

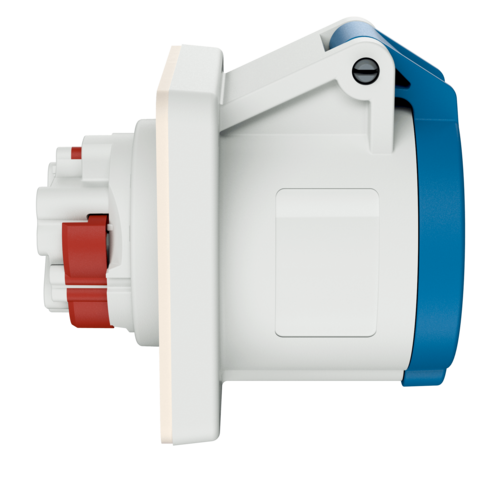

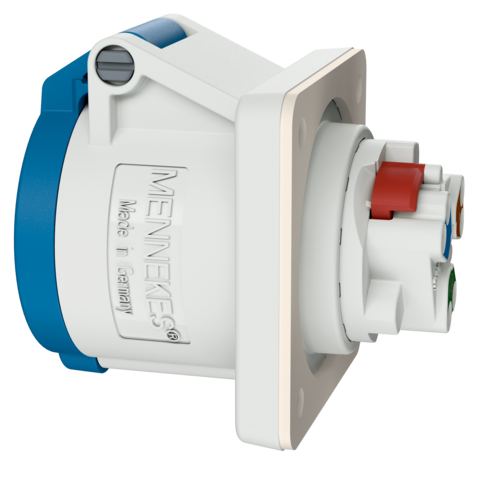

Panel mounted receptacle with TwinCONTACT 1350

MENNEKES panel mounted receptacle for 16 A with TwinCONTACT. Especially suitable for the camping sector.

Ampere 16 A
Clock position

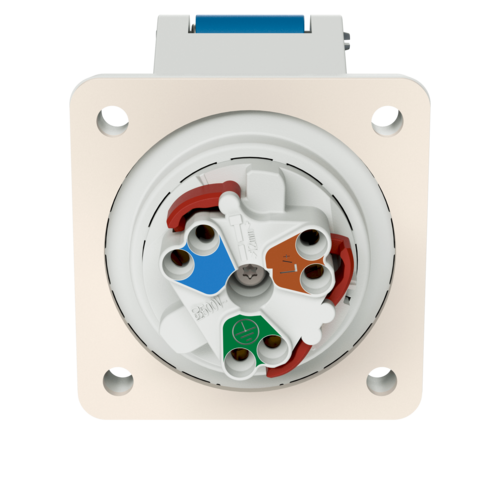

  • screwless spring terminals
  • suitable for through wiring
  • straight
  • Part no.1350
  • EAN4015394221845
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1350

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 62x62 mm
Fixing hole 47x47 mm
Weight 100 g
Declaration of Conformity VDE

Mounting instruction video

Video mounting instructions
