MENNEKES

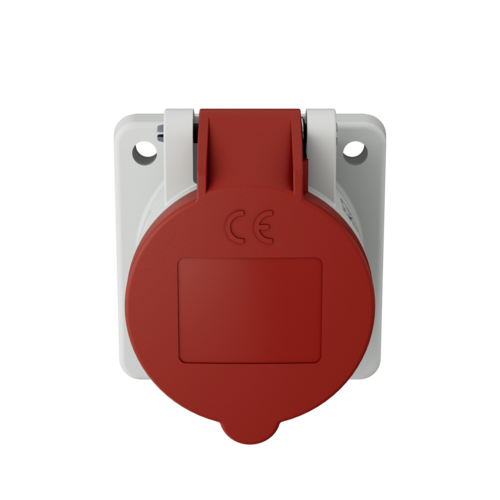

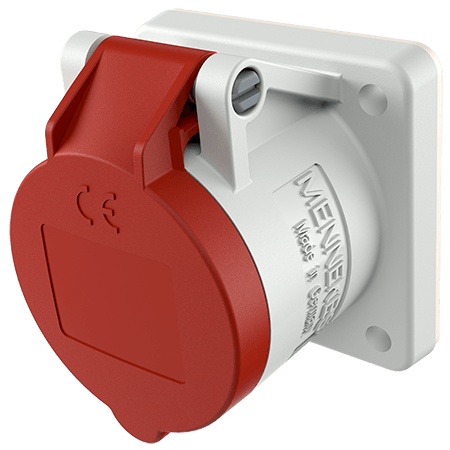

Panel mounted receptacle with TwinCONTACT 1351

Ampere 16 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • straight
  • Part no.1351
  • EAN4015394221852
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1351

Ampere 16 A
Poles 3 p
Voltage 400 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 62x62 mm
Fixing hole 47x47 mm
Weight 102 g
