MENNEKES

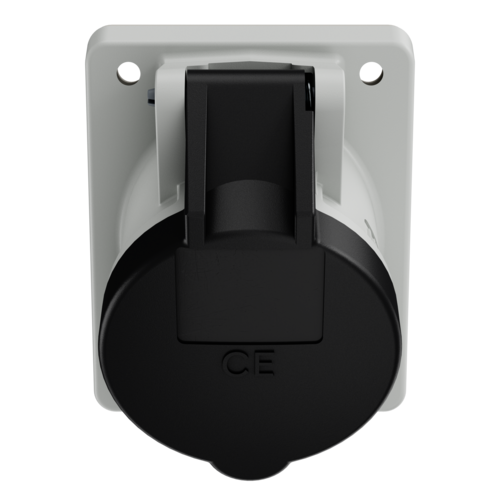

Panel mounted receptacle with TwinCONTACT 155

Ampere 16 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • Part no.155
  • EAN4015394221685
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 155

Ampere 16 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 87x71 mm
Fixing hole 70x52 mm
Inclination 20 °
Weight 134 g
Declaration of Conformity VDE
EAC
