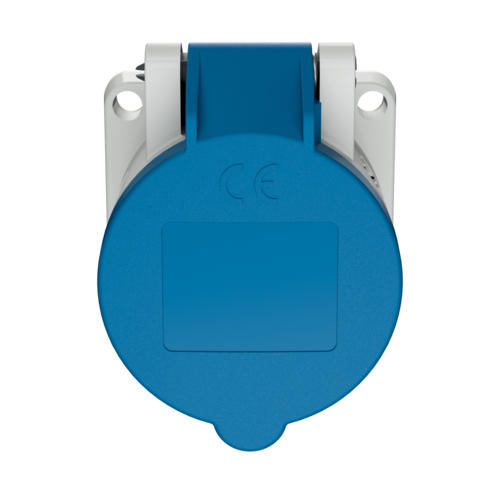

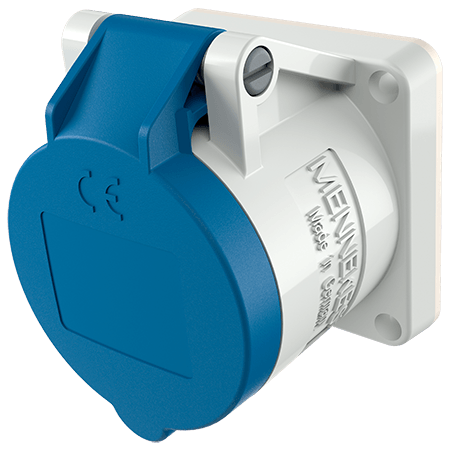

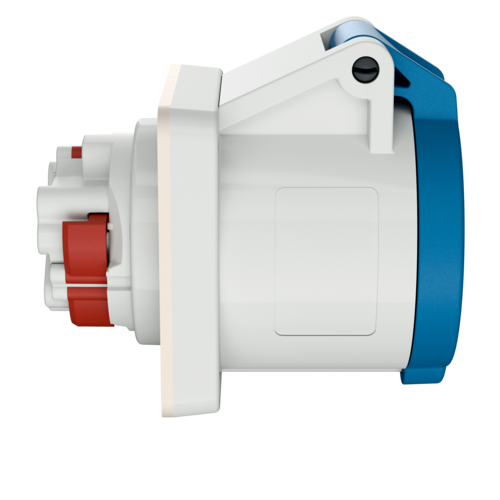

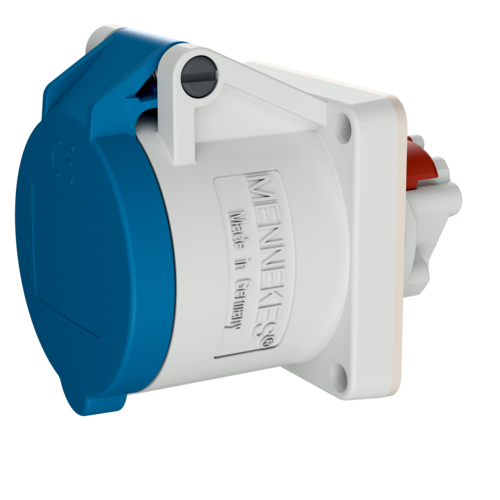

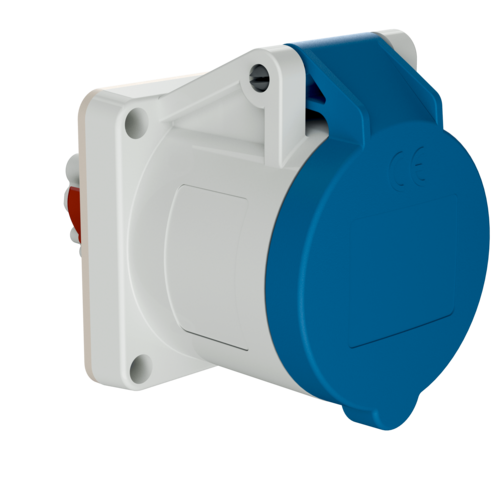

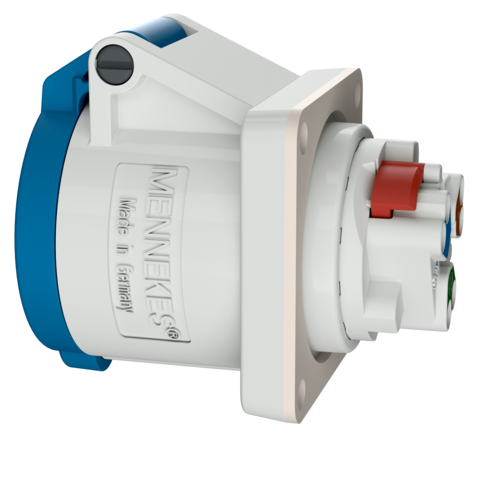

Panel mounted receptacle with TwinCONTACT 1619

MENNEKES panel mounted receptacle for 16 A with TwinCONTACT. Especially suitable for the camping sector.

Ampere 16 A
Clock position

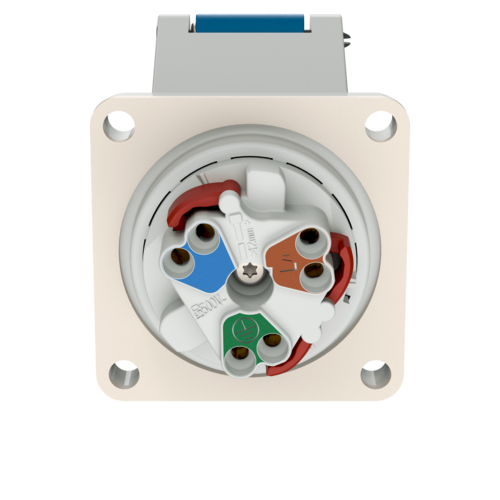

  • screwless spring terminals
  • suitable for through wiring
  • small flange dimensions
  • straight
  • Part no.1619
  • EAN4015394221869
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1619

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 100 g
Declaration of Conformity VDE
