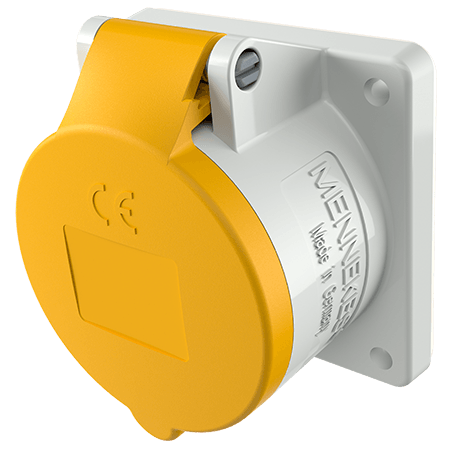

Panel mounted receptacle with TwinCONTACT 1672

Name: Panel mounted receptacle with TwinCONTACT
Brand: MENNEKES
SKU: 1672

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight
blanking flange to close unused apertures part no. 41419

Part no.1672
EAN4015394214502
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted receptacle with TwinCONTACT 1672

Ampere	16 A
Poles	4 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	127 g
Certifications	EAC

Datasheets & Downloads

Panel mounted receptacle with TwinCONTACT 1672

Product infoPanel mounted receptacle with TwinCONTACT 1672 PDF, 176 KB

Mounting instructionsPanel mounted receptacle with TwinCONTACT 1672 PDF, 740 KB

Dimensional drawing portraitPanel mounted receptacle with TwinCONTACT 1672 PNG, 34 KB

Dimensional drawing landscape formatPanel mounted receptacle with TwinCONTACT 1672 PNG, 35 KB

Directives

Panel mounted receptacle with TwinCONTACT 1672

REACh

RoHS

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1672

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

Blanking flange

Part no. 41419

to close unused apertures, grey

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
