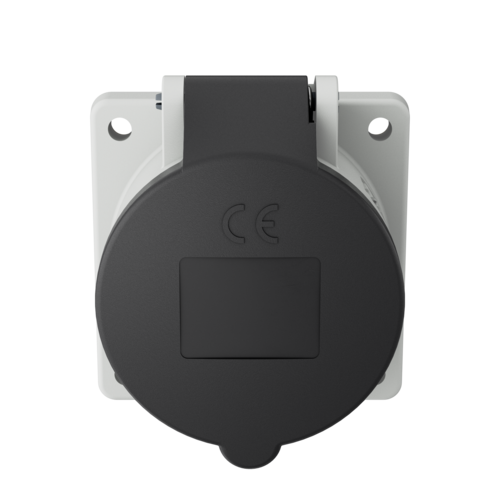

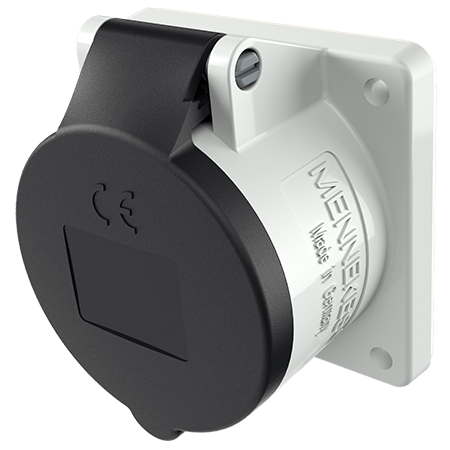

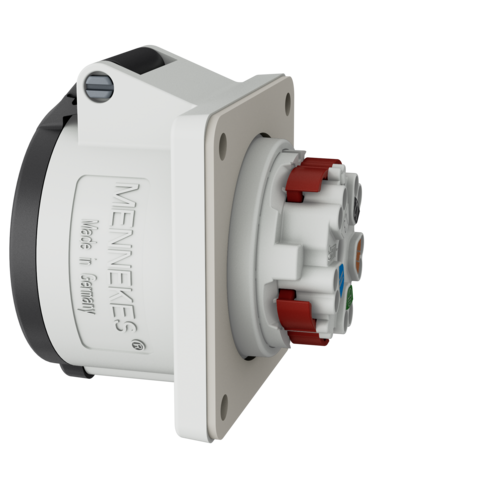

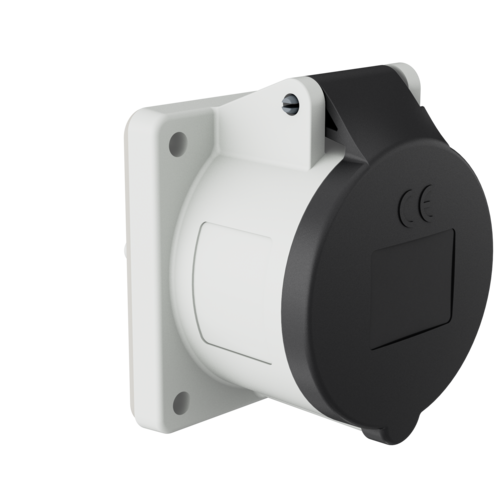

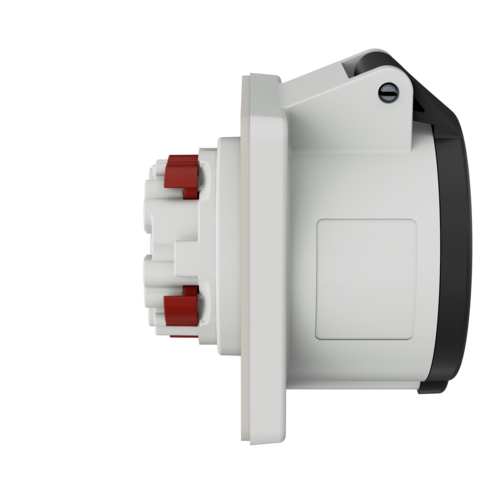

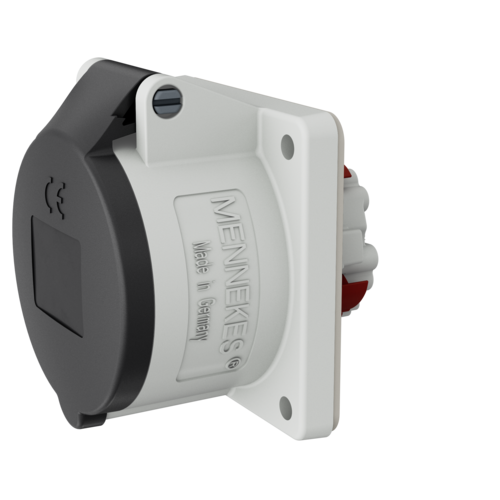

Panel mounted receptacle with TwinCONTACT 1680

Poles
Voltage
Clock position

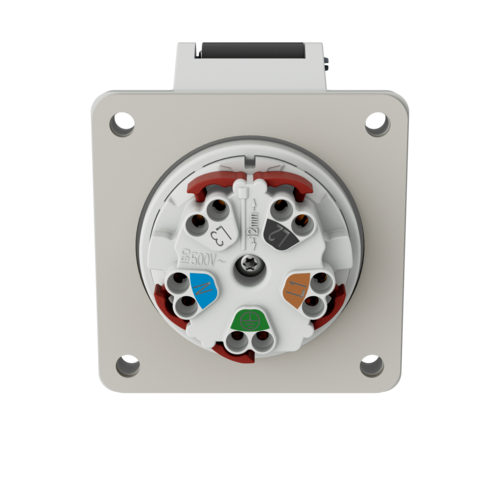

  • screwless spring terminals
  • suitable for through wiring
  • straight
  • blanking flange to close unused apertures part no. 41419
  • Part no.1680
  • EAN4015394214571
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1680

Ampere 16 A
Poles 5 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 152 g
Declaration of Conformity CN,CQC

Mounting instruction video

Video mounting instructions

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1680

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

more

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more

Blanking flange

Part no. 41419

to close unused apertures, grey

more

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

more
