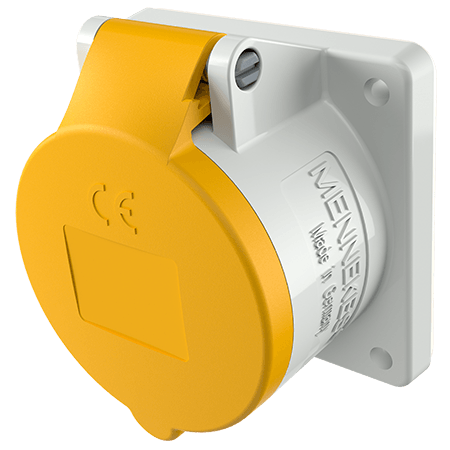

MENNEKES Panel mounted receptacle with TwinCONTACT 1786

Panel mounted receptacle with TwinCONTACT 1786

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • straight
  • Part no.1786
  • EAN4015394214922
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle with TwinCONTACT 1786

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 180 g
Certifications VDE
EAC

Directives

Panel mounted receptacle with TwinCONTACT 1786

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1786

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey
