MENNEKES

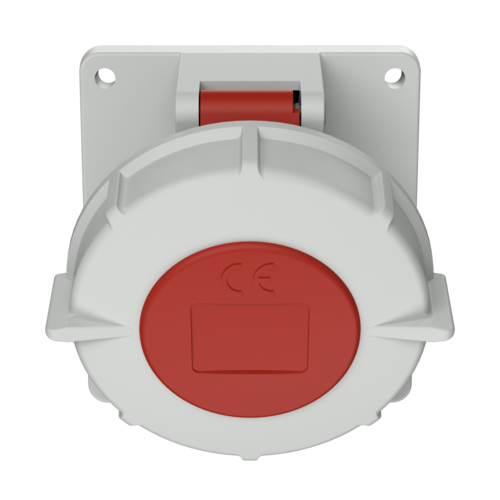

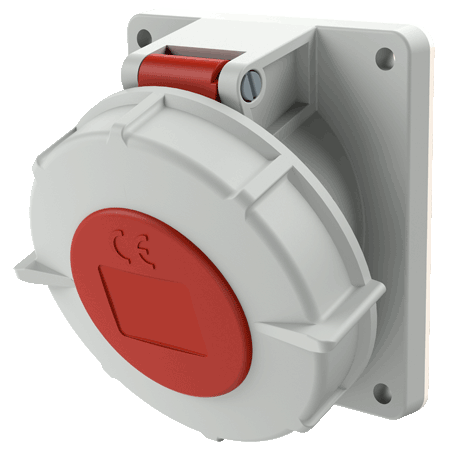

Panel mounted receptacle with TwinCONTACT 1803

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.1803
  • EAN4015394215110
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1803

Ampere 32 A
Poles 3 p
Voltage 400 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 257 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1803

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
