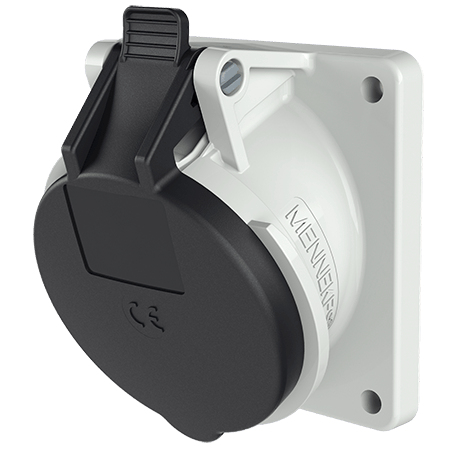

MENNEKES Panel mounted receptacles with TwinCONTACT 3157

Panel mounted receptacles with TwinCONTACT 3157

Poles
Voltage
Clock position
  • screwless spring terminals
  • standard flange dimensions
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3157
  • EAN4015394221609
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacles with TwinCONTACT 3157

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 370 g
Certifications EAC

Directives

Panel mounted receptacles with TwinCONTACT 3157

Appropriate accessories

Panel mounted receptacles with TwinCONTACT 3157

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
