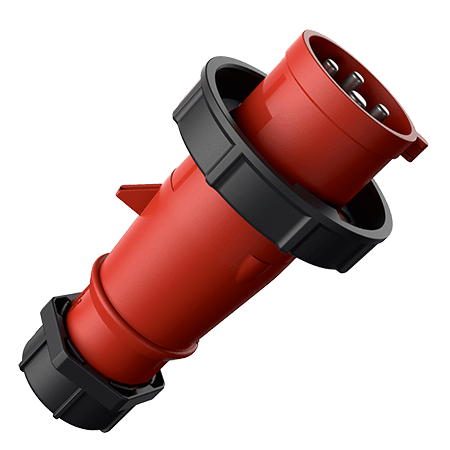

MENNEKES PE inverter AM TOP 2176
MENNEKES PE inverter AM TOP 2176

PE inverter AM TOP 2176

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • with rotor to enable changing the clock position  from 32 A 4 p 3 h 400 V to 32 A 4 p 6 h 400 V
  • Part no.2176
  • EAN4015394283911
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

PE inverter AM TOP 2176

Ampere 32 A
Poles 4 p
Voltage 400-440 V
Clock position 3 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 305 g
Certifications EAC

Directives

PE inverter AM TOP 2176
