MENNEKES

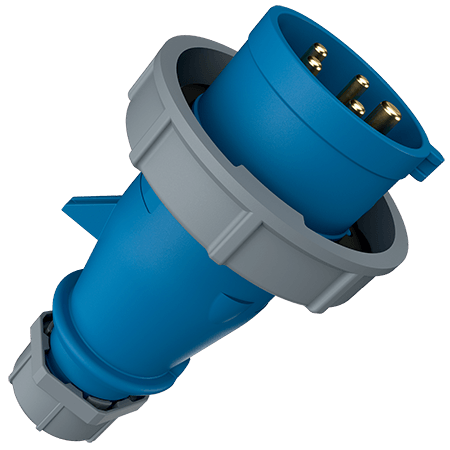

MENNEKES Phase inverter plug AM-TOP 327

Phase inverter plug AM-TOP 327

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.327
  • EAN4015394002307
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Phase inverter plug AM-TOP 327

Ampere 32 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 333 g
Certifications EAC
CQC

Directives

Phase inverter plug AM-TOP 327

Appropriate accessories

Phase inverter plug AM-TOP 327

MENNEKES Protective cover 40786

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets 32 A, 5 p + 7 p

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

Frequently asked questions about the product

What do I use a phase inverter product for?

If a three-phase motor runs in the incorrect direction, our phase inverter products solve the problem quickly and safely. Use a screwdriver to release the lock and turn the insulating section with the two phase pins - the motor will now run in the opposite direction. More information

To the questions and answers
