MENNEKES Phase inverter VarioTOP 859
MENNEKES Phase inverter VarioTOP 859 images3d

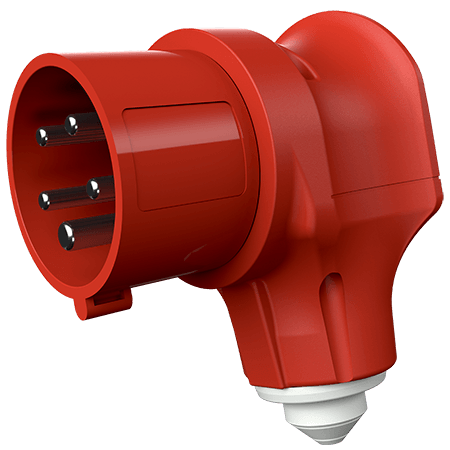

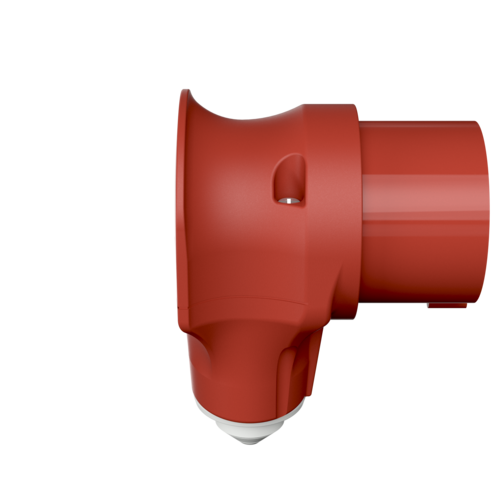

Phase inverter VarioTOP 859

Ampere 16 A
Clock position
  • screw terminals
  • cable entry hood rotating up to 60° to the left or the right
  • with grommet
  • cable entry hood in colour code red
  • especially suited for use with receptacles of the Cepex range
  • Part no.859
  • EAN4015394196419
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Phase inverter VarioTOP 859

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP44
Weight 182 g
Certifications EAC


Phase inverter VarioTOP 859

Appropriate accessories

Phase inverter VarioTOP 859

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

Frequently asked questions about the product

What do I use a phase inverter product for?

If a three-phase motor runs in the incorrect direction, our phase inverter products solve the problem quickly and safely. Use a screwdriver to release the lock and turn the insulating section with the two phase pins - the motor will now run in the opposite direction. More information
