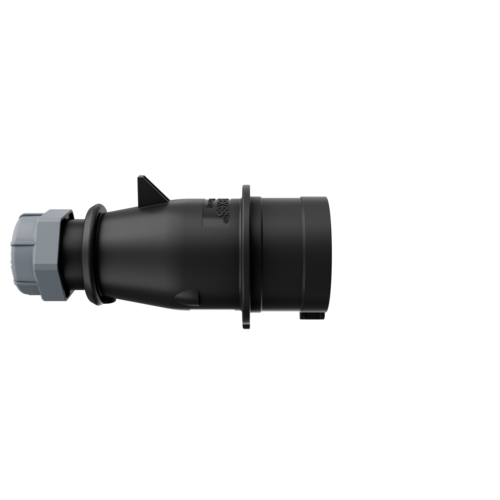

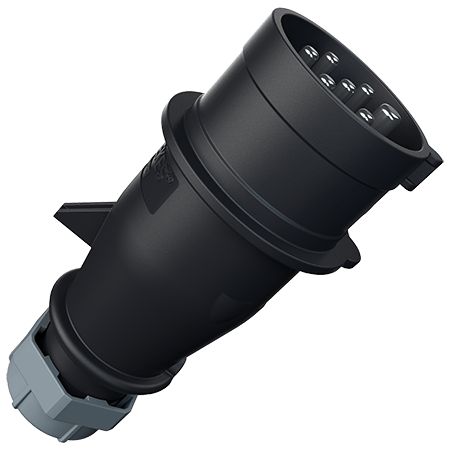

Plug AM-TOP® 1060

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.1060
  • EAN4015394007128
  • Std. Pack. 10 Qty.

Technical specifications

Plug AM-TOP® 1060

Ampere 32 A
Poles 7 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 44
Weight 298 g
Declaration of Conformity CN,CQC

Appropriate accessories

Plug AM-TOP® 1060

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
