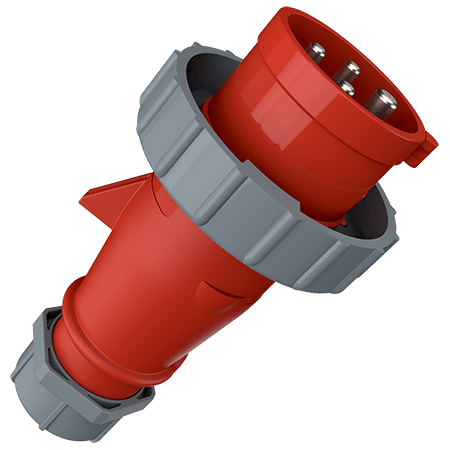

Plug AM-TOP® 20709

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.20709
  • EAN4015394039327
  • Std. Pack. 10 Qty.

Technical specifications

Plug AM-TOP® 20709

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 67
Weight 316 g
Declaration of Conformity DE,VDE

Datasheets & Downloads

Plug AM-TOP® 20709
