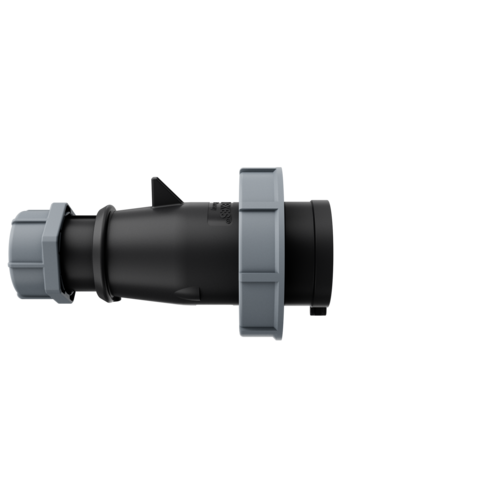

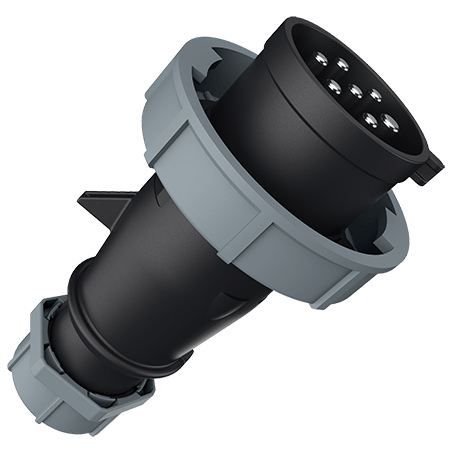

Plug AM-TOP® 2213

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2213
  • EAN4015394013921
  • Std. Pack. 10 Qty.

Technical specifications

Plug AM-TOP® 2213

Ampere 32 A
Poles 7 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 67
Weight 349 g
Declaration of Conformity CN,CQC

Appropriate accessories

Plug AM-TOP® 2213

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets

more

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more
