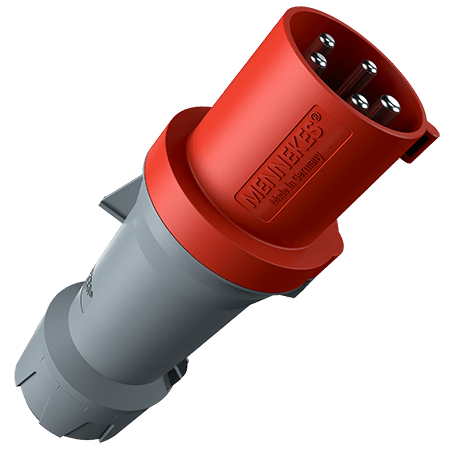

Plug PowerTOP plus 3258
Ampere
63 A
Poles
Voltage
Clock position
- highly heat resistant contact carrier
- frame terminals
- nickel plated contacts
- cable gland and sealing
- strain relief and protection against kinking
Technical specifications
Plug PowerTOP plus 3258
| Ampere | 63 A |
|---|---|
| Poles | 5 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP 44 |
| Weight | 760 g |
| Declaration of Conformity |
DE,VDE CN,CQC |
