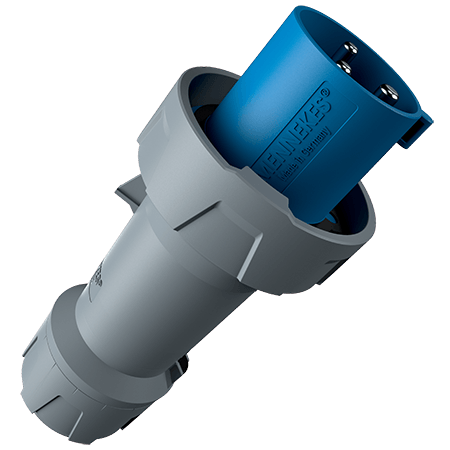

Plug PowerTOP plus 3303

Poles
Voltage
Clock position
  • highly heat resistant contact carrier
  • frame terminals
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3303
  • EAN4015394239512
  • Std. Pack. 5 Qty.

Technical specifications

Plug PowerTOP plus 3303

Ampere 63 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Weight 736 g
Declaration of Conformity DE,VDE
CN,CQC
