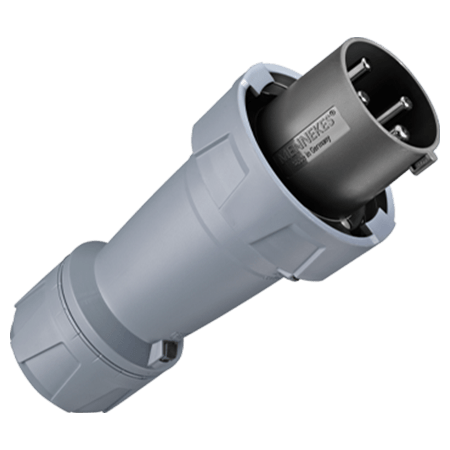

Plug PowerTOP plus 3377

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • highly heat resistant contact carrier
  • frame terminals
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3377
  • EAN4015394248897
  • Std. Pack. 5 Qty.

Technical specifications

Plug PowerTOP plus 3377

Ampere 125 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Weight 1350 g
Declaration of Conformity EAC
CQC

Datasheets & Downloads

Plug PowerTOP plus 3377

Product info Plug PowerTOP plus 3377 PDF, 115 KB
Dimensional drawing portrait Plug PowerTOP plus 3377 PNG, 38 KB
Dimensional drawing landscape format Plug PowerTOP plus 3377 PNG, 37 KB

Instructions

Mounting instructions Plug PowerTOP plus 3377 PDF, 1 MB
