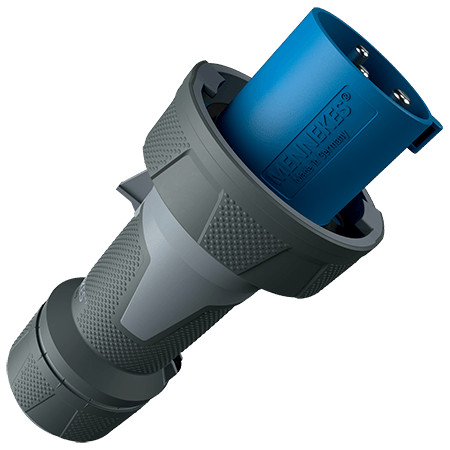

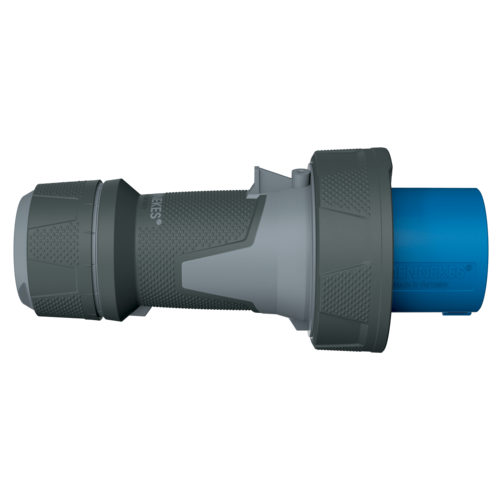

MENNEKES Plug PowerTOP Xtra R 13216
MENNEKES Plug PowerTOP Xtra R 13216 images3d

Plug PowerTOP Xtra R 13216

Poles
Voltage
Clock position
  • screw terminals
  • rubberised grip area
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.13216
  • EAN4015394240853
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP Xtra R 13216

Ampere 125 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 1400 g
Declaration of Conformity VDE
EAC
CQC

Appropriate accessories

Plug PowerTOP Xtra R 13216

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

MENNEKES Protective cover 40788

Protective cover

Part no. 40788

for watertight plugs, wall mounted and panel mounted inlets
