Show all Standard plugs / Show all Plug PowerTOP Xtra R with ErgoCONTACT

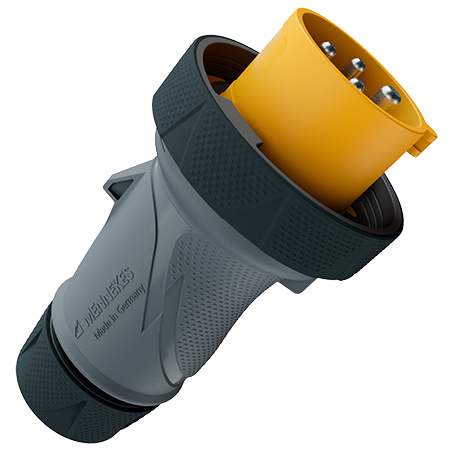

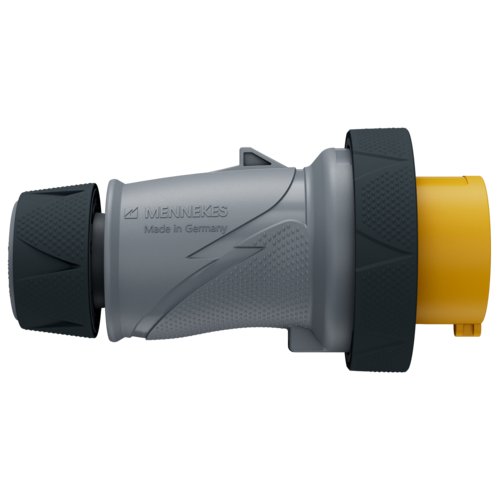

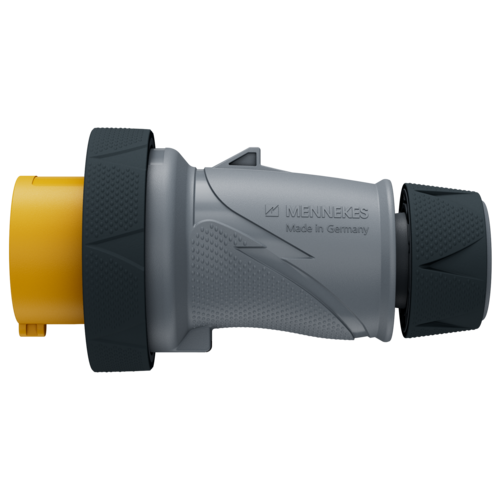

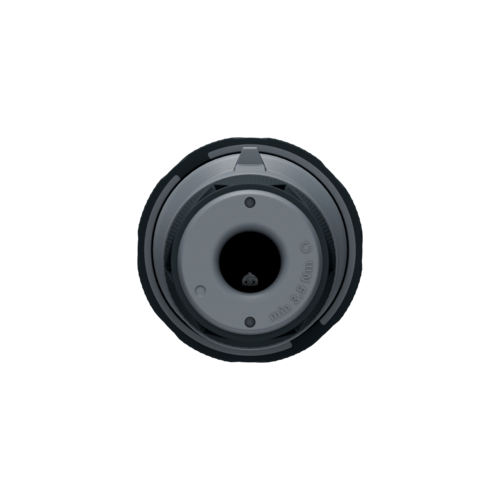

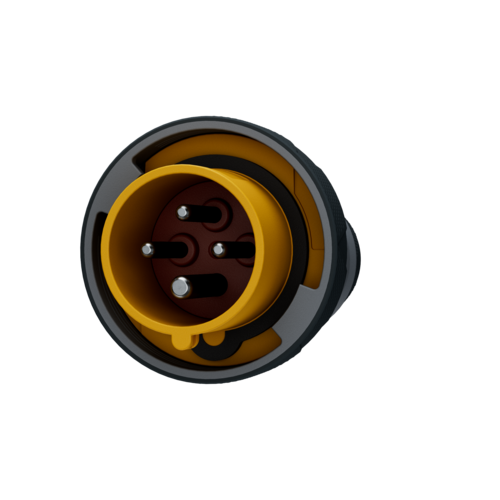

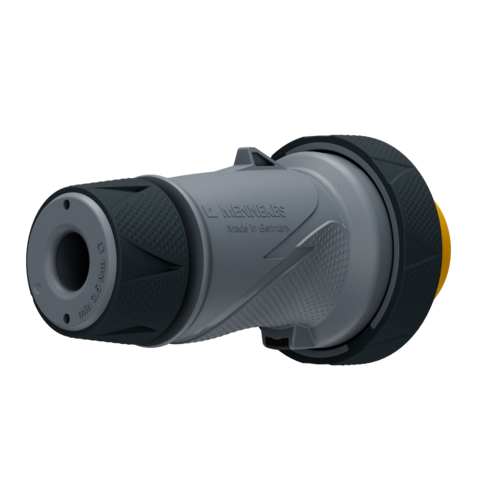

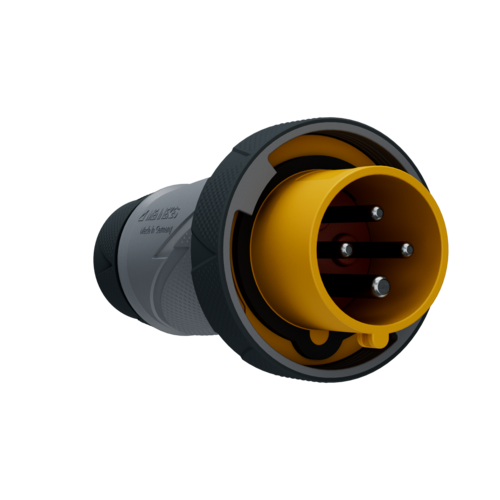

MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13635

Plug PowerTOP Xtra R with ErgoCONTACT 13635

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The...Read more
Ampere 16 A 32 A
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • highly heat resistant contact carrier
  • nickel plated contacts
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13635
  • EAN4015394309161
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

Technical specifications

Plug PowerTOP Xtra R with ErgoCONTACT 13635

Ampere 16 A
Poles 4 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67 / IP69
Weight 240 g

Datasheets & Downloads

Plug PowerTOP Xtra R with ErgoCONTACT 13635

Product infoPlug PowerTOP Xtra R with ErgoCONTACT 13635 PDF, 1 MB
CAD data STPPlug PowerTOP Xtra R with ErgoCONTACT 13635 ZIP, 3 MB
CAD data 3D DWGPlug PowerTOP Xtra R with ErgoCONTACT 13635 ZIP, 3 MB
Mounting instructionsPlug PowerTOP Xtra R with ErgoCONTACT 13635 PDF, 2 MB
Dimensional drawing portraitPlug PowerTOP Xtra R with ErgoCONTACT 13635 PNG, 160 KB
Dimensional drawing landscape formatPlug PowerTOP Xtra R with ErgoCONTACT 13635 PNG, 346 KB

Videos

Plug PowerTOP Xtra R with ErgoCONTACT 13635

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP Xtra R with ErgoCONTACT 13635

REACh
RoHS

Appropriate products

Plug PowerTOP Xtra R with ErgoCONTACT 13635 with IP67 / IP69

MENNEKES Connector PowerTOP Xtra R with ErgoCONTACT 14635

Connector PowerTOP Xtra R with ErgoCONTACT

Part no. 14635

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 110 V
  • Connection technology: Screw terminals, ErgoCONTACT
more

Appropriate accessories

Plug PowerTOP Xtra R with ErgoCONTACT 13635

MENNEKES Set cable gland PowerTOP Xtra G 42940

Set cable gland PowerTOP Xtra G

Part no. 42940

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 16 A

more
